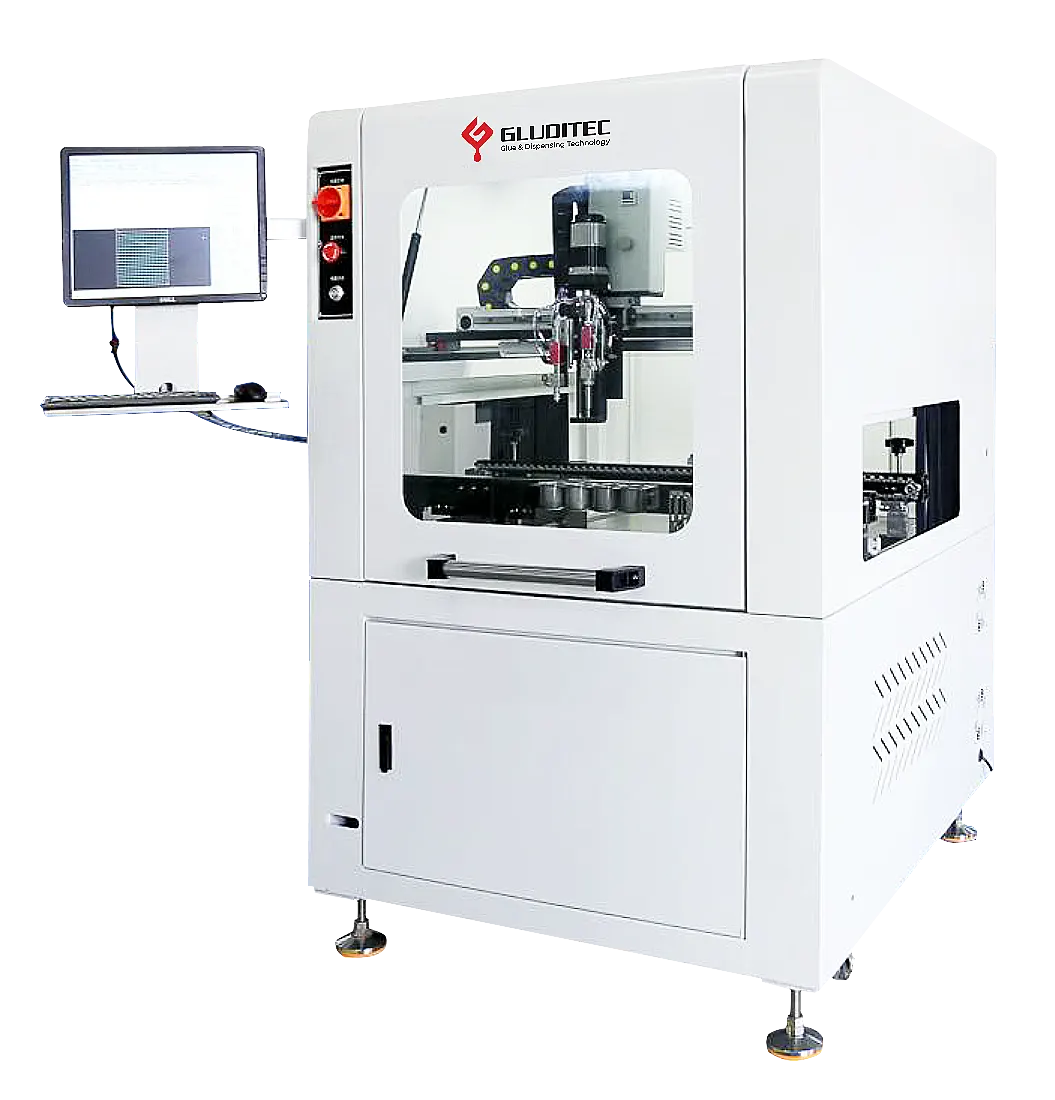

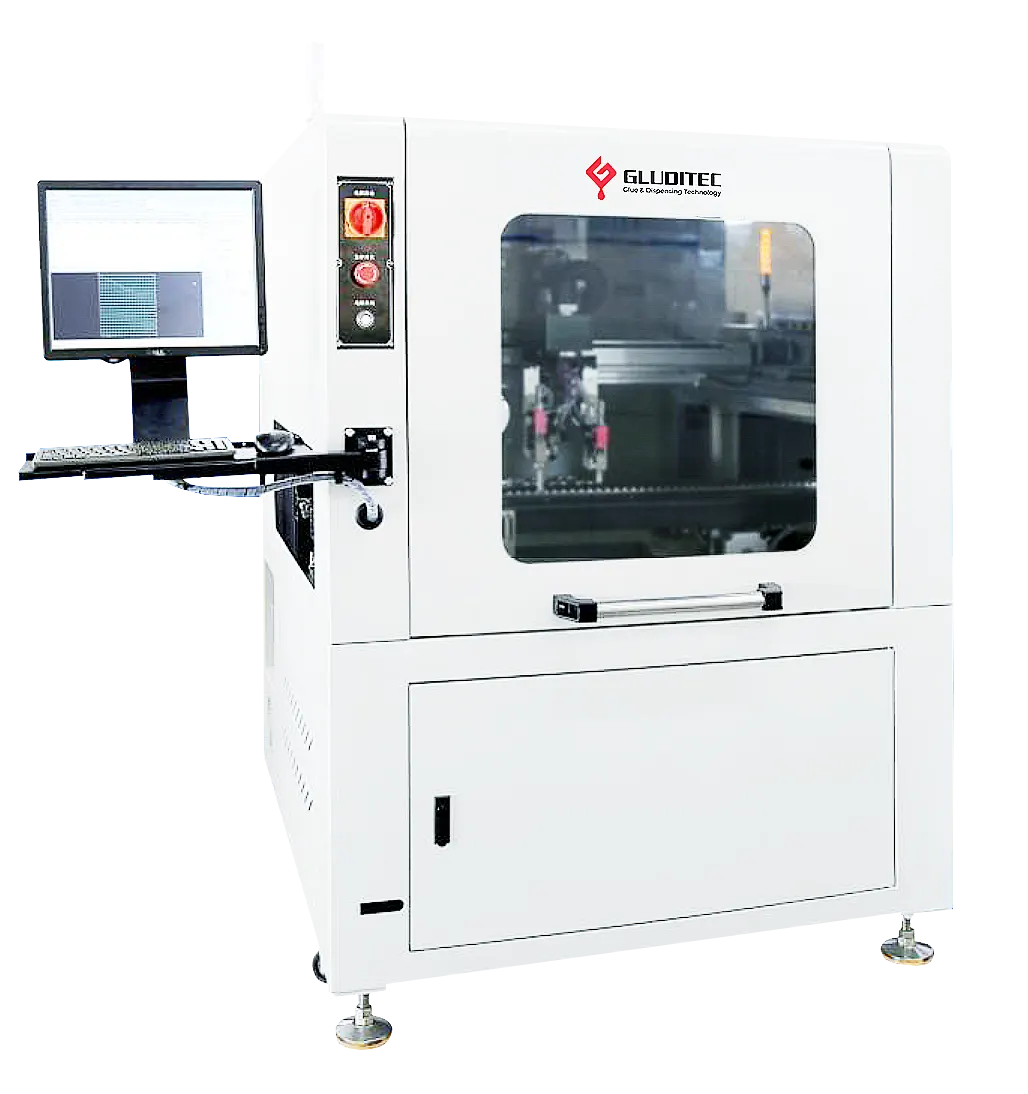

Product Introduction: IGC-520 Conformal Coating System
The IGC-520 is a high-precision conformal coating system designed for selective spraying on circuit boards. With its three-axis X, Y, Z movement system, it ensures uniform coverage while avoiding critical uncoated areas. Featuring an upgraded driver and high-quality platform, the IGC-520 is an efficient, reliable choice for PCB manufacturing.
IGC-520 Features:
- Three-axis movement system prevents overspray on critical components.
- Supports multiple spraying patterns, including point, linear, and curve spraying.
- Uniform coating along device edges, eliminating shadow effects.
- Advanced transmission for high-speed, reliable operation.
- Intelligent electric width adjustment for optimal board positioning.
IGC-520 Applications:
- High-precision conformal coating for complex PCBs.
- Protective coating for electronic components.
- Ideal for industries such as automotive, aerospace, telecommunications, and consumer electronics.
- Seamless integration into automated SMT production lines.
About Prostech
Prostech Philippines is a one-stop solution provider for specialty materials and equipment across electronics manufacturing, from PCBA to final assembly. Our core material and equipment solutions include:
- PCB Assembly Materials
- Cleaning & Degreaser
- Circuit Board Protection
- Thermal Management Solutions
- EMI Shielding
- General Assembly Adhesives
- Elastomeric Materials
- Process Equipment: Potting & Coating Systems, UV/ Heat Curing, Plasma Treatment, Tape placement automation, and cleaning machines
Technical Added Value to customer
Prostech offers customized material and process equipment solutions with engineering support throughout R&D, production process optimization, and performance validation. Our in-house lab located in Alabang, Muntinlupa is equipped to conduct electronics material testing, application simulation, and adhesive validation, helping customers reduce the need for onsite trials and accelerate implementation.
International Supply Chain Advantage
Regional warehouse hubs across Vietnam, Singapore, Malaysia, and the Philippines ensure cross-border reliable supply. In Philippines PEZA-bonded warehouse located at Lima Industrial Park, Batangas enables Prostech to provide responsive, demand-based delivery and significantly shortens standard lead time for Philippines customers.
Need help selecting the right product or solution?
Typical Properties
| Properties | IGC-520 | IGC-5202 | IGC-5204 | IGC-520D |
|---|---|---|---|---|
| External Dimensions | L1060mm x W1300mm x H1700mm | |||
| Device Platform | T25 stainless steel plate | |||
| Control Mode | Industrial computer & motion control card | |||
| Programming Method | Manual teaching | |||
| PCB Transmission Height | 910±20mm | |||
| Transportation Speed | 0 ~ 5000 mm/min | |||
| Conveying Method | Chain conveyor | |||
| Transmission Motor | Motor acceleration reducer | |||
| Conveying Width | 50 ~ 450mm adjustable | |||
| Element Height | Up & down Max. 110mm | |||
| Width Adjustment Method | Intelligent electric adjustment | |||
| Three Axis Drive | Servo motor + fully enclosed screw module drive | |||
| Running Speed | Max. 1000mm/s | |||
| Repetitive Accuracy | ±0.02mm | |||
| Valve Set | 01 Dispensing Valve & 01 Micro Spraying Valve | 02 Synchronization Spraying Valve with adjustable coating distance | 04 Synchronization Spraying Valve with adjustable coating distance | 02 Dispensing Valve & 02 Spraying Valve with group adjustable coating distance |
| Tank Volume | 10L Glue Tank & 2L Cleaning Tank | |||
| Equipment Power Supply | AC220V/ 50Hz/ 1.8kW | |||
| Equipment Air Source | 4~6kgf/cm² | |||
| Equipment Weight | Approx. 700kg | |||
| Standard Features | Equipped with cleaning function, lighting source & fluorescence detection light source | |||
